- .Mifare IC card USB reader, Send data to cursor location, HID USB no driver is requested
- .Mifare card reader supports Mifare Ultralight/ Nano/EV1/C，Mifare Classic EV1,Mifare Plus S/SE/S/EV1，Mifare Desfire EV1/EV2，N-TAG Card Emulation
- .Modify RFID reader output format with a configuration card which is in the shipment box
- .Emualte USB keyboard output, so easy interfaced into RFID system without changing the original software or program, selectable 28 formats are suitable for most common system
- .Default setting is 8H 10D format, Send card data in 10 digital datas to focused window as an external input device
1. Product Profile
13.56M RFID USB reader, USB HID Device, Reads S50, S70, Mifare Ultralight/ Nano/EV1/C，Mifare Classic EV1,Mifare Plus S/SE/S/EV1，Mifare Desfire EV1/EV2，N-TAG Card Emulation
Modify the RFID reader output with a configuration card, total 28 formats can be choiced, support AZERTY keyboard layout
2. Feature:
13.56M Mifare RFID USB reader:
- Read Mifare ISO14443A card UID serial number, Ntag 253, 1K,4K,s50,s70 etc.
- Buzzer and Bi-color LED indication
- QWERTY,AZERTY,Franch keyboard layout
- 28 formats selectable
-Disable or Enable buzzer
- default setting: output 10 digitals number, QWERTY layout,on focused window
3. Specification:
-Power supply: from USB port
-Consume: Standby 30mA ; max 100mA
-Reading range: upto 8cm
-Frequency: 13.56M HZ
-Support Card: 14443A Mifare, S50, S70, Mifare Ultralight/ Nano/EV1/C，Mifare Classic EV1,Mifare Plus S/SE/S/EV1，Mifare Desfire EV1/EV2，N-TAG Card Emulation
- Certification: CE
4.Package list:

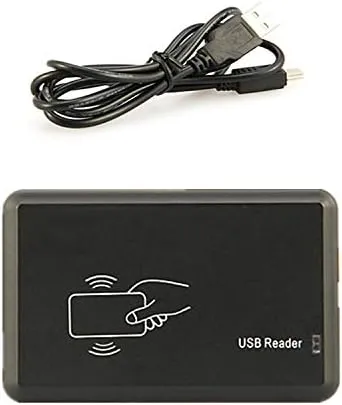

- M301 reader: 1
- USB cable: 1 (1.2M)
- Mifare ISO card: 4 blank 1 config card
5. Q&A
Q: Can copy Mifare card?
A: Not, It reads UID CSN of Mifare card only
Q: Any Demo or software?
A: Reader works as external input device, no driver and software is requested
Q: What is the meaning of format QWERTY/AZERTY
A: 29 E, QWERTY layout , in default
30 F, AZERTY keyboard layout such French / Slovakia
